Portable Electronic Nose for Lakatan Banana

Update: This project was accepted into HNICEM 2023 IEEE conference! You may check the IEEE paper below!

About the Thumbnail: This is the CAD design my group and I made for the capturing of ethylene to measure the ripeness of the banana inside a container.

OVERVIEW:

The Portable Electronic Nose (E-Nose) project aims to design and build a compact device capable of detecting volatile organic compounds (VOCs) emitted by harvested fruits — specifically Lakatan bananas.
These VOCs are chemical signatures that indicate ripeness and overall fruit quality.

The motivation behind this project is to provide a scientific and consistent alternative to manual fruit ripeness evaluation, which is often subjective and prone to error.
Through a combination of gas sensors, microcontroller-based data acquisition, and 3D-printed enclosures, the e-nose demonstrates how electronics and product design can contribute to sustainable postharvest technologies.

Methodology

1.) System Design and Architecture The e-nose was conceptualized as a self-contained, portable sensing system.
Its main subsystems include:

Sensor Array: MQ3, MQ4, and MQ135 gas sensors for VOC detection, and a DHT11 sensor for monitoring temperature and humidity.
Processing Unit: Arduino Mega 2560 microcontroller for data processing and control.
Data Storage and Interface: SD Card Module for local data logging and an OLED display for real-time readouts.
Control Inputs: Three push-buttons to start instant detection, begin continuous recording, and stop recording.
Exhaust System: A fan with adjustable speed (via a potentiometer) for purging residual gases from the sensor chamber after each test.

All components were wired through universal PCB boards, with decoupling capacitors added to stabilize voltage supply across the circuit.

Checking relay functionality on fan below the enose.

voltage check in BMS if it has achieved the required supply and also charging capability.

2.) Enclosure Design and Fabrication The enclosure was designed using Autodesk Fusion 360, featuring a geodesic dome structure for balanced airflow and mechanical strength.
The structure consists of:

Dome Enclosure: Houses the sensors and electronics.
Base Platform: Serves as an air intake with an 80 mm opening for VOC entry.
Sensor Chamber: Positioned centrally to ensure that VOCs directly pass over the gas sensors.

The dome was fabricated via Fused Deposition Modeling (FDM) 3D printing using PLA filament, chosen for its durability and ease of printing.

Computational Fluid Dynamics (CFD) analysis verified that passive air diffusion was sufficient to deliver VOCs to the sensors effectively, avoiding turbulence caused by forced airflow.

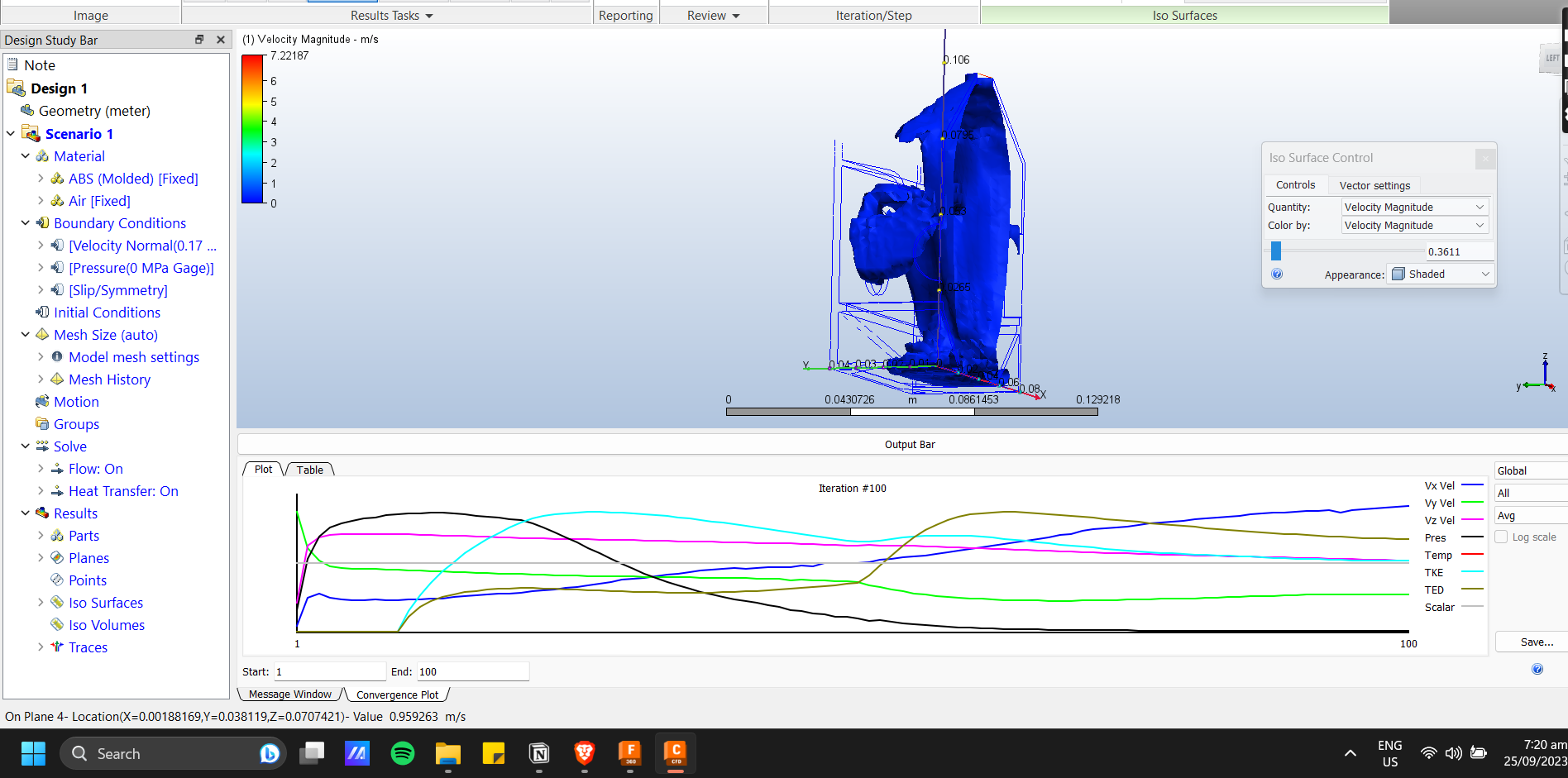

Setup of the enose CFD under F360 simulate environment and library. Given topology of potential airmass being directed in target spaces inside gas chamber.

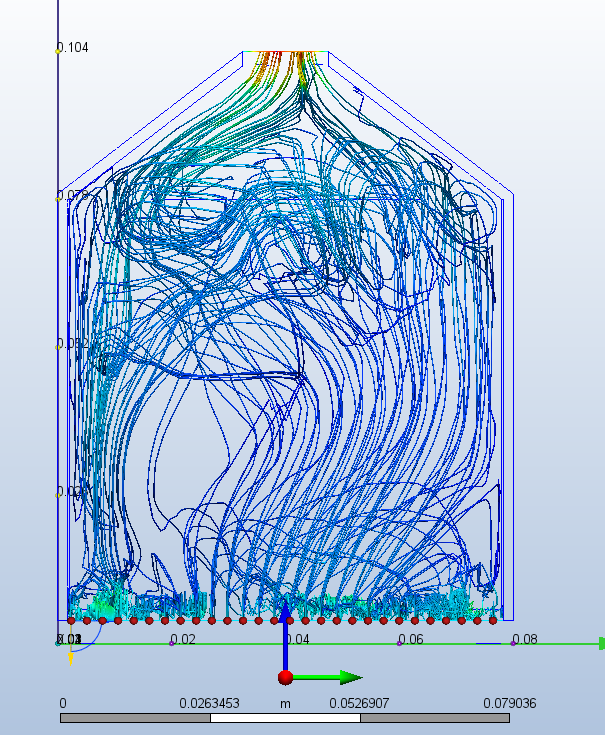

Final CFD validation of the air path of enose going to exhaust at the top where VOCs is coming from the bottom.

Scenario where dome is utilized for capturing of VOCs. Was later scratched since too many holes that the gas will escape to.

3.) Firmware and Control Logic The firmware was developed in the Arduino IDE using IF-THEN-ELSE conditional logic to classify banana ripeness stages: unripe, ripe, or overripe.

Two modes of operation were implemented:

Instant Detection Mode: Captures VOC data every 5 seconds for 1 minute and immediately classifies ripeness based on calibrated ppm levels.
Recording Mode: Continuously logs sensor data (gas, temperature, humidity) every second until stopped by the user.

After each measurement session, the exhaust fan is manually activated to clean the sensor chamber and reset baseline readings.

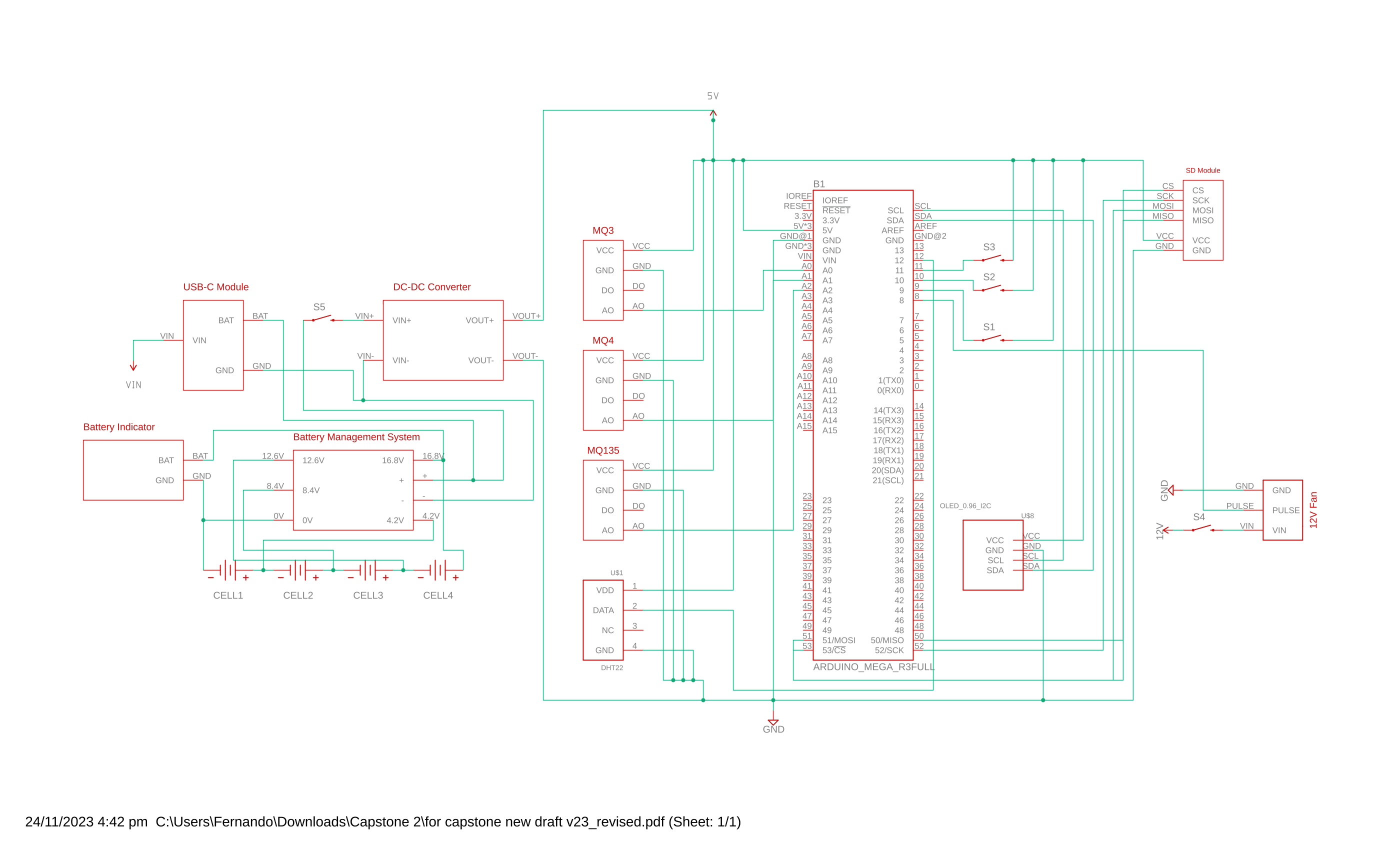

The wiring diagram as seen in Autodesk Eagle.

Findings:

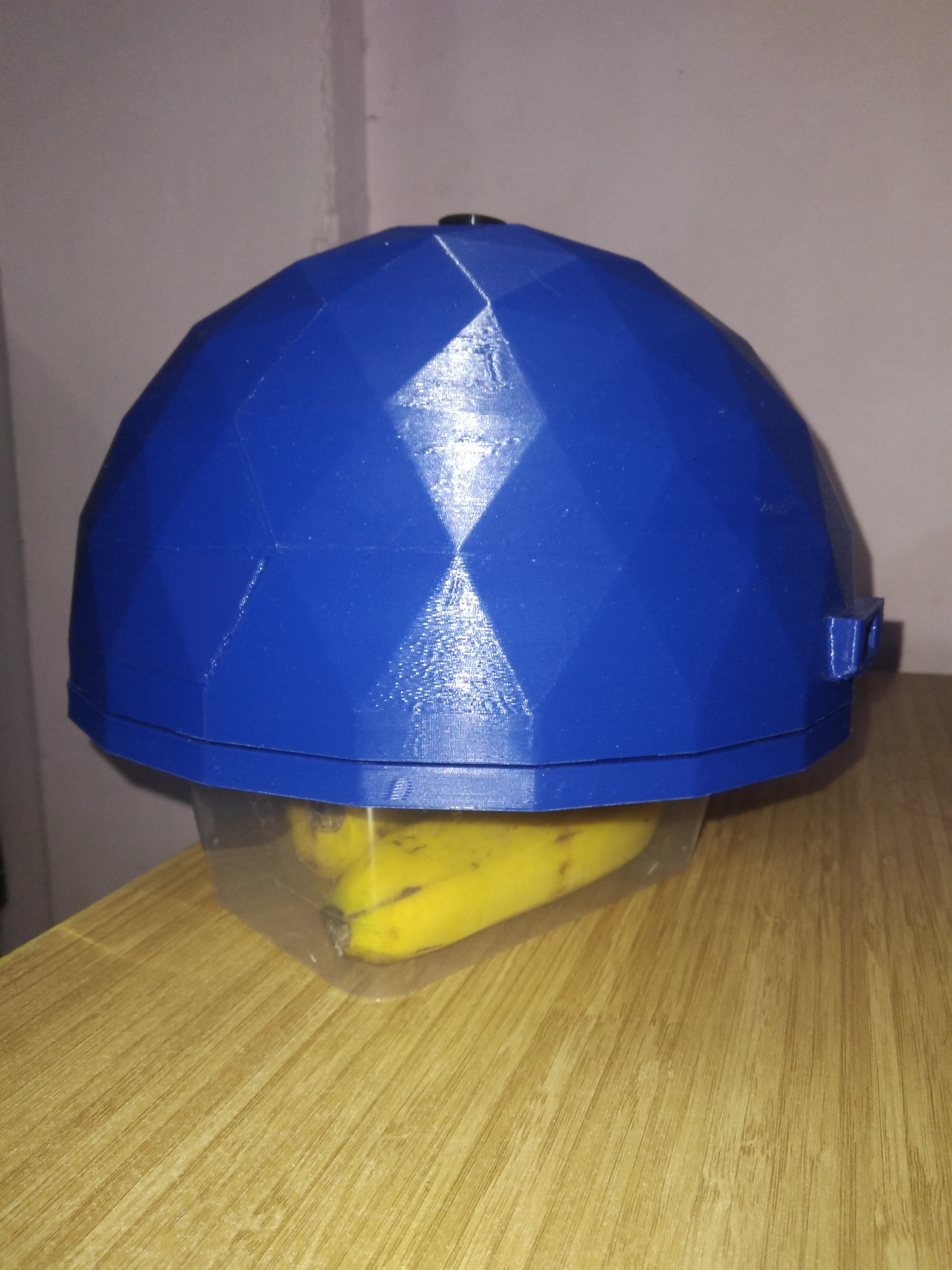

The final developed enose prototype!

enose with a lakatan banana inside will suck the air and VOCs being produced

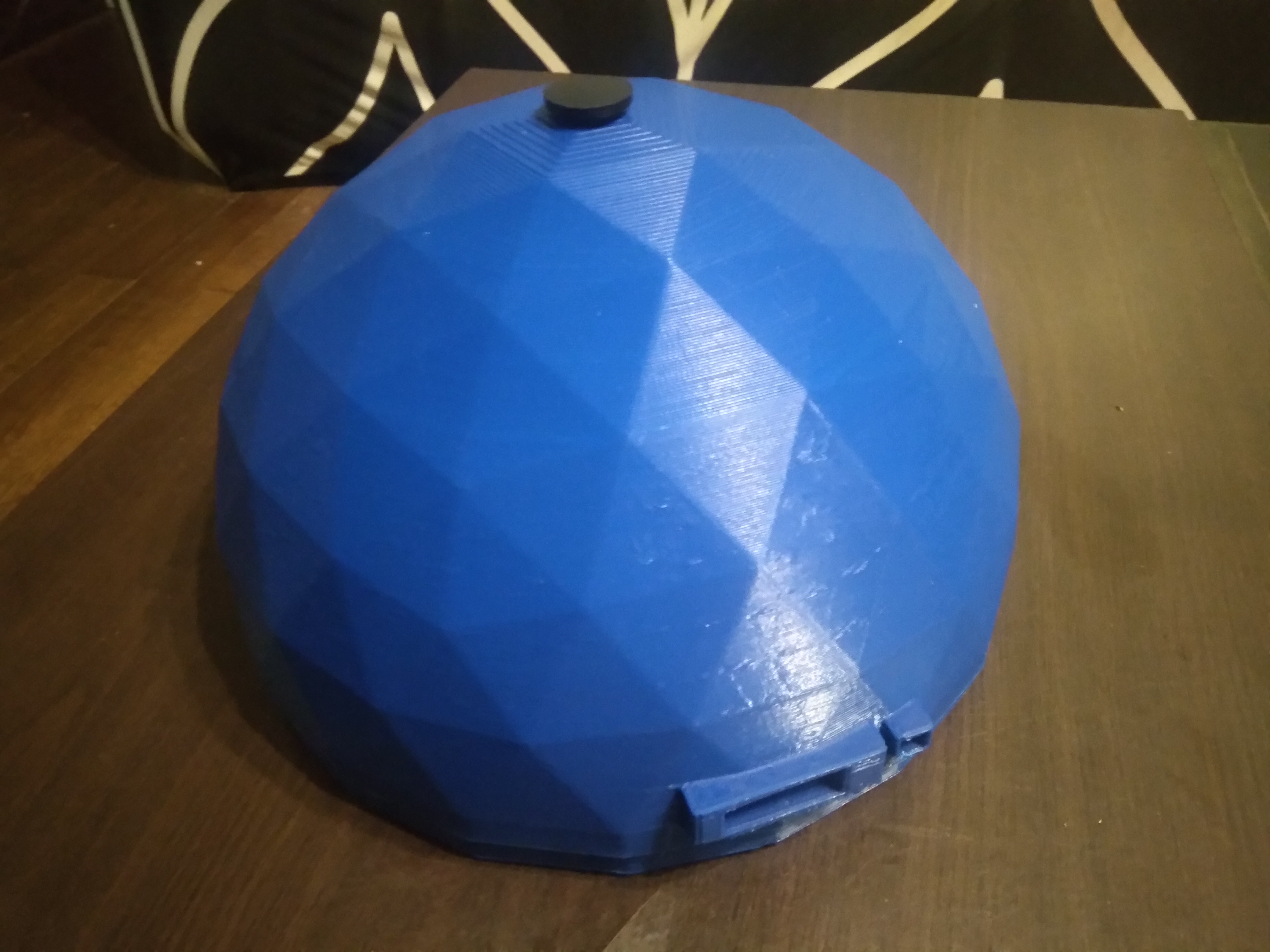

Electronic nose looked when closed

Electronic nose when expanded/opened.

Sensor Performance: The MQ-series gas sensors demonstrated sensitivity to the VOCs released by bananas, showing a clear increase in ppm readings over time during ripening trials.
In contrast, control tests (without fruit samples) produced stable, flat readings — confirming the e-nose’s ability to distinguish VOC presence.

MQ3 and MQ4: Responded primarily to alcohols and methane-type compounds emitted during ripening.
MQ135: Detected general air quality changes due to ethylene and other organic gases.
DHT11: Recorded stable temperature (~28°C) and increasing humidity correlated with banana respiration.

Data Handling and Circuit Stability The Arduino Mega provided sufficient analog inputs and memory for multi-sensor data collection.
The addition of decoupling capacitors on the PCB reduced voltage noise, ensuring consistent sensor readings even under simultaneous logging and display operations.

The SD Card Module successfully stored datasets in CSV format, enabling external analysis and visualization.
The OLED Display provided immediate feedback, showing ppm readings and classification outputs in real time.

Each detection cycle lasted approximately one minute, allowing users to obtain quick ripeness assessments without lengthy calibration procedures.

The hardware layout, combined with optimized sensor placement, minimized signal delay between air exposure and ppm response.

Below are a series of explanation videos that detail how the system works discussed by me in preparation for defense!

What to check inside the e-nose and initializing the setup and MCU firmware.

The act of closing the dome after complete check.

Explanation of the different user interactions outside the dome and what to expect from the system to perform.

Extracting the data from the SD card and checking of logging of the gas sensors.

LEARNINGS AND CONTRIBUTIONS:

This definitely put me to the test in terms on how I can make the most impact for the development of the device from start to finish. We had already a definite idea on the peripherals that we want to utilize but was unsure on how to make integrate it to our constraints to meets its wanted functionality of becoming portable while retaining a means to capture the VOCs.

This project enabled me to try for the first time to do everything from utilizing 3D printers, BMS modules for Li-on batteries, make the connections and diagrams through Autodesk Eagle and even our CFD for validation of airflow! These are all self-taught and something that I needed to learn to contribute for the team as this was not taught in class formally. What gave me leverage was how I was eager to make this work and work my way around on parts where I was lacking.

Proud to share here our IEEE paper below! you may check also the publication in IEEE Explore. You may contact or leave a comment here for any further inquiries regarding the design, development and validation of the device. Thanks!

IEEE paper presented in conference that focuses on the development of the device.

Below are some of the pictures that I have when developing the prototype with the team, Raph, Nester and Lance! I made them banana cakes from the 30 lakatan banana samples, so that was a cool side quest also borne out of not wasting the bananas haha

Our picture taking after we defended this project in front of a panelist!

HOW THIS PROJECT CAN BE FURTHER IMPROVED: Of course, reflecting on this after we have successfully developed the device, there are many gaps in how this can be commercialized. I did the wirings for the device and it took me a while to finish it, around 15 days give or take since I was on and off on doing it. I only had my trusty helping soldering hand tool for holding the wires and connectors in place in the universal PCB.

Now, I should have invested more time in doing a custom PCB board that will cover an MCU, BMS module, and specific GPIO interfaces so that we wont be utilizing a hefty Arduino Mega for handling of the signals in all our peripherals. We opted to use UART and I2C i believe but what should have been better is to dedicate a another module for data acquisition instead of putting all the signals into processing. I was thinking of trying two Seeed Studio’s XIAO series MCU for this but I wouldn’t known better at the time.

Of course, the wirings are a problem if you want to troubleshoot and despite labelling, the issue is that it is prone to entangled in transport and that happened once when I was commuting where smoke was coming out from the e-nose prototype and that was due to a short circuit in the batteries (scared the fellow passengers and my groupmate when they heard it 😅😅). Doing a design in EDA should have been done but we were running out of time and nobody knew how to do it!!

Lastly, validation of the airflow via computational fluid dyanmics (CFD) was needed to determine where we are going to place the sensors inside the gas chamber. At first, it was a no-brainer to put it in the sides but discussions surfaced if we can ditch the whole gas chamber since we were not utilizing the dome’s potential. I tested both out both ideas and we agreed that having the gas chamber to concentrate the gas in one point is ideal for the detection of these elusive VOCs. In essence, other software with better capabilities like ANSYS should have been utilized since it provided a more intuitive report about the whole process.

Aside from the technical skills, I had troubles also relaying my concerns and communicate to the team. At the time, I was having trouble dealing with the electronics by myself since I was juggling with other commitments and this definitely affected the timeline with me shifting also the team to do and add stuff that was not part of the proposal. I pushed for it since it was a core part of the project but we did not consider what came next. When asked how we determine that the system is fully integrated, we didnt know how to answer until I cited that I can perform a continuity test and signal integrity check to ensure that each component is receiving the appropriate voltage and it sends out the proper signal!

Definitely, I lacked on communication by the end and was loose on changing plans midway which I now know is crucial to be more strict on the timeline and sticking to the plan when doing collaborations in a project. That is definitely something I should work on moving forward!
