Vision-based grading and sorting of iceberg lettuce

Update: This project was accepted into TENCON 2025 IEEE conference!

Github repo: here

OVERVIEW:

This project presents a vision-based automated quality grading system for iceberg lettuce (Lactuca sativa var. capitata), integrating Genetic Programming (GP) for parameter estimation and Fuzzy Logic (FL) for quality classification. The system addresses inefficiencies in manual grading, ensuring objective, consistent, and non-destructive quality assessment in line with Philippine National Standard for Head Lettuce (PNS/BAFPS 19:2005)

Key Features:

• Uses image-derived features (RGB & HSV) for analysis.
• Estimates chlorophyll-a, moisture content, and fresh head weight via genetic programming (GP) models.
• Classifies lettuce into three grades using a Mamdani-Type 1 fuzzy logic inference system:
  • Grade 1 (High Quality)
  • Grade 2 (Medium Quality)
  • Grade 3 (Low Quality)
• Achieved 90% classification accuracy on test samples.

Methodology

1.) Image Capturing & Processing

• Lettuce heads were photographed in a controlled chamber (~400 lux).
• Images were pre-processed in MATLAB, with data augmentation (scaling, flipping, rotating) to expand the dataset.
• Extracted RGB and HSV mean values, commonly used in crop ripeness and food quality analysis.

2.) Parameter Extraction

• Three key quality parameters were measured in the laboratory:
• Chlorophyll-a – extracted using ethanol and quantified with UV-VIS spectrophotometry (663 nm, 645 nm).
• Moisture Content – determined via oven-drying at 80°C for 8 hours.
• Fresh Head Weight – measured directly with an analytical balance.

3.) Genetic Programming (GP) Modeling

• Input: RGB & HSV values
• Output: Predicted values of chlorophyll-a, moisture content, fresh weight.
• Models evaluated using R², RMSE, MAE, and complexity.
• GP1 (RGB-HSV inputs) outperformed GP2 (HSV-only inputs) in predictive accuracy.

4.) Fuzzy Logic Classification

• Mamdani-Type 1 fuzzy system with membership functions:
• Inputs: chlorophyll-a, moisture content, fresh head weight.
• Output: Grading level (L1, L2, L3).
• Membership functions:
  • Input parameters → trapezoidal/triangular sets (low, average, high).
  • Output (grade) → Gaussian functions.
  • Decision rules mapped estimated values to quality grades.

Results

• Model accuracies:
  • Chlorophyll-a: 89.97%
  • Moisture Content: 92.8%
  • Fresh Head Weight: 85.38%
• Overall system grading accuracy: 90% (27/30 samples correctly classified).
• Minor misclassifications occurred, mostly biasing towards Grade 2 when the true grade was Grade 3.

LEARNINGS:

Learnings for this culminating project of our course is of course the increasing need to blend the disciplines of mechanical, electrical and software development towards emerging technologies. We have demonstrated here that from the design phase to the implementation and validation of the system, just how important our field is for these types of application.

This is especially true since both software and hardware are hard to combine where all engineering practices fail to meet and cover where they are lacking (i.e. ECE doing CAD work not knowing GD&T or ME doing wirings not knowing how to do a cont. test) is where MEM particularly their specialty in mechatronics, excel.

I was able to conceptualize and touch here all aspects of what MEM is but we even went beyond and consulted biology professionals that is outside the scope of our field to justify our laboratory work to capture the biochemistry and phenotyping of our iceberg lettuce cultivar and target surface canopy for our computer vision application towards fuzzy-genetic programming (naks, doc ronn & doc ira, i hope u see this, im using your doc lingo haha)

Overall, the project holds many potentials for precision agriculture and with new advancements in emerging tech, I’m just glad that we got to try this before this gets labelled as outdated work which is true given that more powerful black box AI systems are dominating the commercialization of such product. Here we value explainability for our AI system and try it out with our chosen quality parameters.

Proud to share here our complete manuscript below!

HOW THIS PROJECT CAN BE FURTHER IMPROVED: Despite the near complexities to utilize XAI techniques for the implementation of the vision based grading to infer the lettuce quality off only the pixels and known training dataset, the project can be further improved by giving out at least the values and picture of the given lettuce into the stakeholder. This is the essence of this model acting as a support decision system for lettuce quality determination and how likely the model was able to sort the quality off known laboratory values.

The essence of this also is to also store the data and do traceability of the lettuce quality upon date of grading which will boost the credibility and how market goers will assure that the lettuce is indeed fresh and priced fairly of its quality. This is a missed oppurtunity to utilize internet-of-things but that was outside the scope of our research given the novelty of applying additional parameters for prpactical applications.

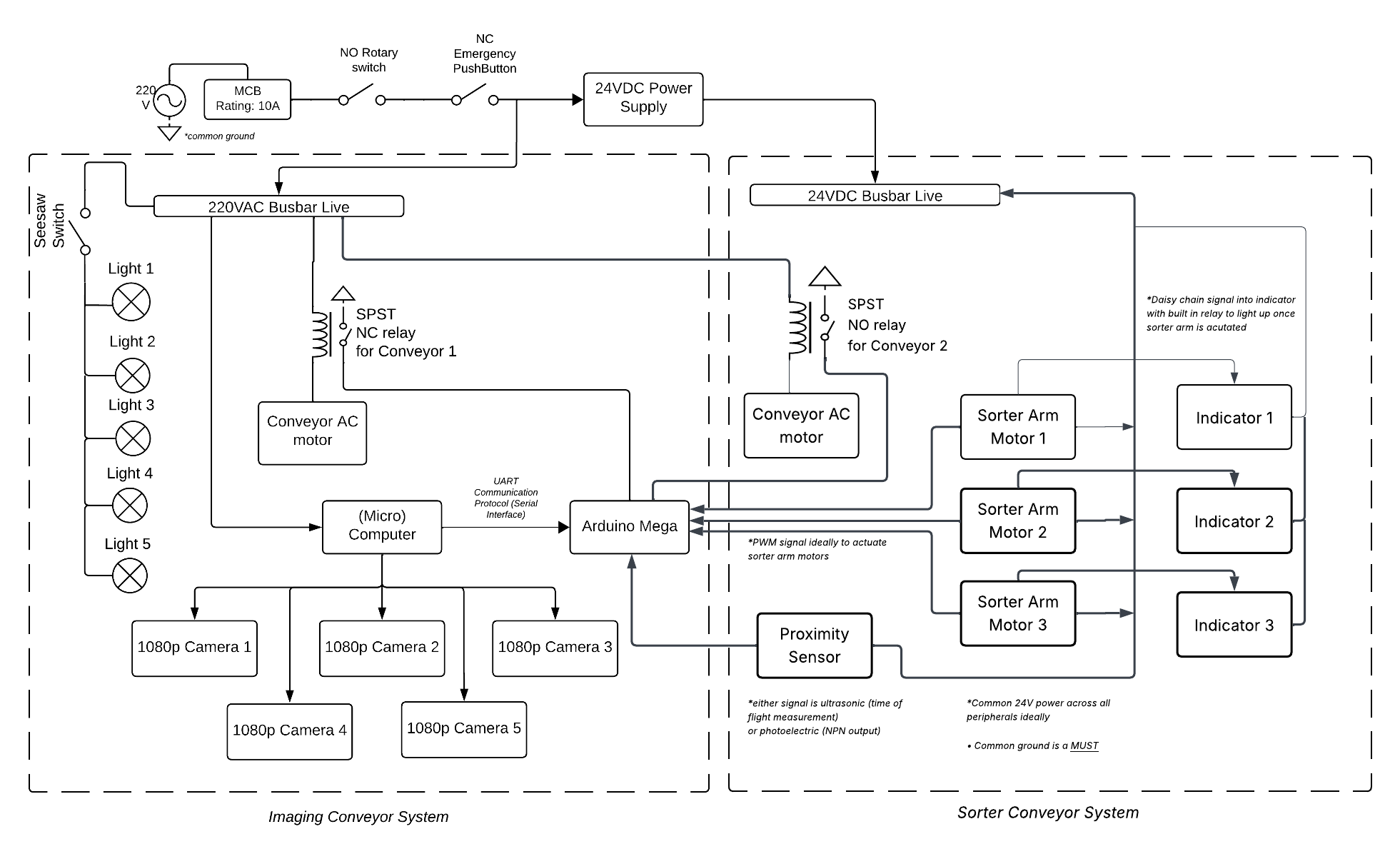

Lastly, we did consider the use of PLC-based control for the system given that we are managing only 3 actuators based on the model output to make it more robust. This is where we got stuck on how to connect the control logic from the MATLAB produced code. Looking at its now this can be hardcoded in such a way that a OPC-UA server is placed in a microcomputer that will then act as a gateway service between inferencing, quality forecast and then switching relay to actuate our servo arms. These will be considered in the future once deployment is being considered and in talks for future researchers for digital agriculture.

Lastly future implements can explore digital twinning to validate and simulate physical systems of the project before proceeding. This is an excellent way to provide and make inferred decisions about the moving parts and how they will interact before doing the actual assembly. Too bad and this was not part of our specific objectives.
